Revitalize and Enhance: Retrofitment, Reconditioning, and Overhauling Services
With over ten years of expertise, we specialize in retrofitting controllers, converting to servo-hydraulics, and reconditioning plastic molding machines. Our solutions ensure dependable control systems, consistent performance from cycle to cycle, simplified troubleshooting, and comprehensive machine calibration. Furthermore, we enhance machines with extra functionalities such as robot integration, energy monitoring, parallel operation, dosing unit interfacing, built-in hot runner systems, and more.
Solution provides for
- Machine Controller retrofit
- Servo Hydraulic Conversion
- Toggle Reconditioning
- Overhauling of injection molding machine
Advantages of Retrofitment (Controller & Servo conversion)
- Upgrading the machine with latest features & Options
- Significantly reduce downtime associated with component failure.
- Reduce rejection via improved accuracy and repeatability.
- Reduce Energy Consumption
- Enhance production capabilities using new software and custom ‘recipes’ stored at the control or portable flash media.
- Add new capabilities including robotics, multiple cores, valve gate controls, process monitoring, closed loop proportional speed and pressure control.
- Reduce cycle time through improved clamp control and core sequence.
- Extend productive life of machinery.
- Facilitate monitoring and maintenance via remote diagnostics, alarm screens and meticulous documentation
- Gives you the latest user-friendly, closed-loop process control technology with full calibration.
- Support for current technology upgrades and enhancements
- Improved closed loop process control functions

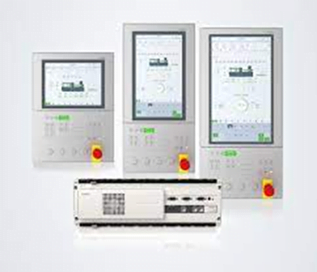

Controller Retrofitment with KEBA i1000 / i2000 series controller
As a packaged control system “KePlast control system i1000” provides very cost competitive application specific, programmable logic control with the advantages of integrated, total machine control. It is real-time-capable, thereby enabling a continuously controlled quality of production.
- For hydraulic standard injection molding machines
- Ultra-compact single-board computer
- 7″ to 10.4″ TFT displays
- Operation via micro switch keyboard
- Closed-loop injection process including
- Monitoring by means of injection graphic
- SPC package (Statistic Process Control)
- Expandable via CAN bus
- Network-compatible through Ethernet connection

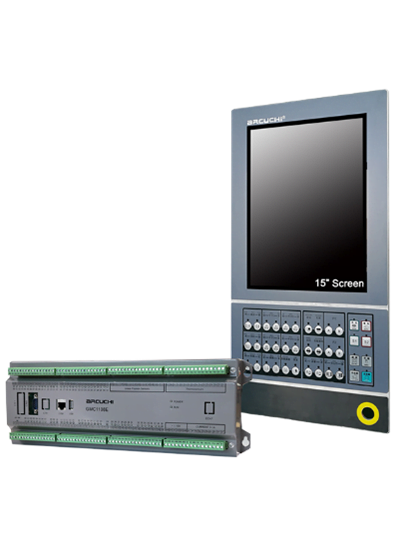

Controller Retrofitment with Arcuchi GMC series controller
Arcuchi injection molding controllers 1108-8″, 1108-10″ and 1108-15″series offers very cost-effective solution for medium tonnage range of machines.
- High-quality industrial HMI, easy to operate, reliable and durable.
- Multi-dimensional graphical process data analysis curve, reduce the difficulty of commissioning.
- Standard U-disk connector is convenient for data backup and update data
- Dual-core CPU + ASIC architecture, low power consumption, high performance and stable.
- Industrial design specifications.
- Work environment temperature -20°C~ 65°C.
- Integrated F-RAM technology.
- User dada never lost.
- Integration of a variety of control algorithm, simplify the machinery and oil circuit design.
- 3 CPU Processors.
- 2 years’ warranty
- Digital Touch Screen
