Overview
Alaska Machinery in association with leading mold manufacturer from Taiwan, India, China & Korea has given us the added advantage of reducing the cost to produce molds without compromising the quality. High Quality Injection molds for thin wall packaging, PET Preforms, PVC Fittings, Caps & Closures etc
Our Commitment to Quality
Quality is at the core of everything we do. We understand the critical importance of producing thin wall packaging molds that meet the highest standards in the industry. To ensure superior quality, we use cutting-edge technology, employ the best materials, and adhere to strict quality control measures throughout the manufacturing process.
Products
Cutlery Mold
Alaska Machinery supply cutlery molds from 16 cavity to 48 cavity hot runner, semi hot runner, high quality, weight consistent with excellent cycle time cutlery molds as per customer requirement (heavy duty and thin wall) for PS and PP cutleries.
Our cutlery molds have unique high production performance, correct external product size and passed strict tests.
Excellent cooling and exhaust system to meet high-speed injection molding process requirements.
Excellent mold structure and precise processing technology ensure dimensional tolerances and achieve uniform product wall thickness.
We use an effective cooling system and hot runner system to achieve the shortest cycle time in the cutlery molding.
| Cavitation | Cycle time | Machine |
|---|---|---|
16 | 6s | 180T |
24 | 8s | 180T |
32 | 10s | 275T |
48 | 12s | 350T |
Pail and Lid
Suitable Mould Structure
It depends on the detail plastic paint buckets, such as the sliders design which could not be required when the buckets are direct and simple; mechanical ejection design for automatic falling or collection by robots; certain fixing design for further heat transfer printing
Suitable Mould Steel
It should be considered with the plastic paint bucket production requirement, and the steels for different mould parts could be different, such as the P20, 718H, H13 and DIN1.2316… Finally customers get the better cost-effective molds.
Optimal Mould Cooling
The cooling design would be well done when customers require shorter and shorter cycle time, besides the best cooling channels, the Cu-Be inserts also could help on the better cooling, the main parts could be bottom area and top mouth rib area.
Best Cycle Time achieved for 20L Paint pail; 22 S.
Machine Size: 550T
Thin wall mould
- Good flow behavior combined with fast crystallization, enabling shorter cycle times leading to higher productivity.
- Offering phthalate-free solutions and excellent organoleptic performance
- Good mechanical property resulting in excellent top load performance for high stackability, leading to lower transport and storage costs.
- Down gauging possibilities
- Renewable PE & PP product range using a renewable feedstock supporting our customer’s sustainability goals
Thin wall Product cycle time
| Product | No of Cavity | Cycle Time | Machine SIze |
|---|---|---|---|
1000ml RE Base | 4 | 7.0 | 450T |
650ml RE Base | 4 | 7.0 | 450T |
500ml RE Base | 4 | 6.5 | 450T |
450ml RE Base | 4 | 6.0 | 350T |
250ml RE Base | 4 | 6.0 | 350T |

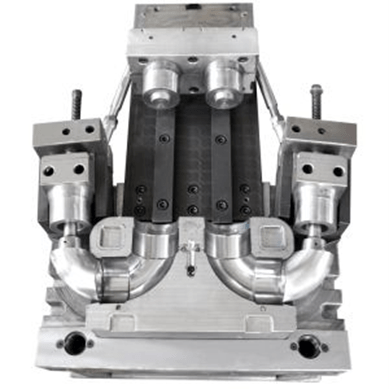

PVC Fitting Mold
Our meticulously crafted PVC fitting molds embody accuracy and innovation. With a focus on creating flawless connections, our molds ensure leak-free, reliable, and durable PVC fittings. Experience the future of plumbing and construction with our high-performance molding solutions
Household Mold
Our household molds redefine everyday living through intricate design and functionality. From ergonomic kitchen tools to versatile storage solutions, our molds create products that seamlessly integrate into modern living spaces. Elevate your home with our meticulously crafted molds that enhance both aesthetics and utility.
Key Features of Our Injection Molds
- Precision Engineering: Our team of expert mold designers and engineers meticulously craft each mold, considering every detail to deliver molds with exceptional precision and accuracy.
- Fast Cycle Times: We specialize in creating molds that enable faster cycle times, optimizing your production processes and increasing output efficiency.
- Durability and Longevity: Our injection molds are built to withstand the demands of high-volume production, ensuring prolonged mold life and reduced maintenance costs.
Applications of Our Thin Wall Packaging Molds:
- Food Packaging: Our molds are widely used in the production of thin wall containers for the food industry, ensuring the safe and efficient packaging of perishable goods.
- Beverage Industry: From cups and lids to bottles, our molds enable the manufacturing of lightweight yet sturdy packaging solutions for various beverages.
- Medical Packaging: We provide molds for thin wall medical containers, offering hygienic and secure packaging for pharmaceutical products and medical supplies.
